HMC721LC3C - 13 Gbps Fast Rise Time XOR / XNOR Gate with Programmable Output Voltage

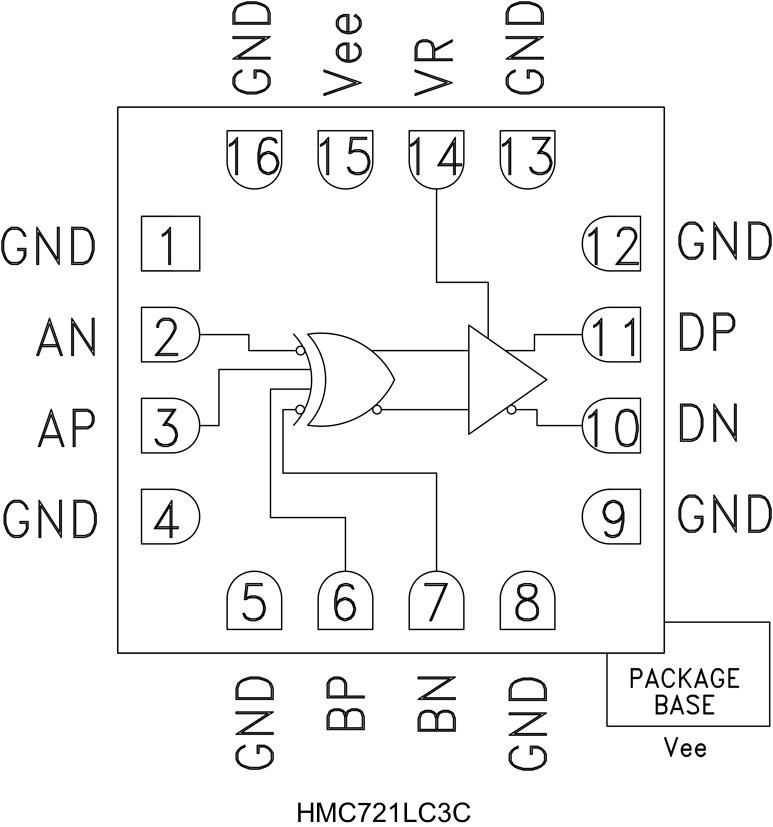

HMC721LC3C是AD公司的一款AD芯片产品，HMC721LC3C是13 Gbps Fast Rise Time XOR / XNOR Gate with Programmable Output Voltage，本站介绍了HMC721LC3C的封装应用图解、特点和优点、功能等，并给出了与HMC721LC3C相关的AD元器件型号供参考。

HMC721LC3C - 13 Gbps Fast Rise Time XOR / XNOR Gate with Programmable Output Voltage - AD芯片 - 高速逻辑产品 - Analog Devices

产品描述

The HMC721LC3C is a XOR/XNOR gate function designed to support data transmission rates of up to 13 Gbps, and clock frequencies as high as 13 GHz. The HMC721LC3C also features an output level control pin, VR, which allows for loss compensation or for signal level optimization.

All input signals to the HMC721LC3C are terminated with 50 Ohms to ground on-chip, and may be either AC or DC coupled. The differential outputs of the HMC721LC3C may be either AC or DC coupled. Outputs can be connected directly to a 50 Ohm to ground terminated system, while DC blocking capacitors may be used if the terminating system is 50 Ohms to a non-ground DC voltage. The HMC721LC3C operates from a single -3.3V DC supply, and is available in a ceramic RoHS compliant 3x3 mm SMT package.

Applications

RF ATE Applications

Broadband Test & Measuremen

Serial Data Transmissionup to 13 Gbps

Digital Logic Systems up to 13 GHz

优势和特点

Inputs Terminated Internally in 50 Ohms

Differential & Singe-Ended Operation

Fast Rise and Fall Times: 19 / 18 ps

Low Power Consumption: 230 mW typ.

Programmable Differential

Output Voltage Swing: 600 - 1200 mV

Propagation Delay: 95 ps

Single Supply: -3.3V

16 Lead Ceramic 3x3mm SMT Package: 9mm
