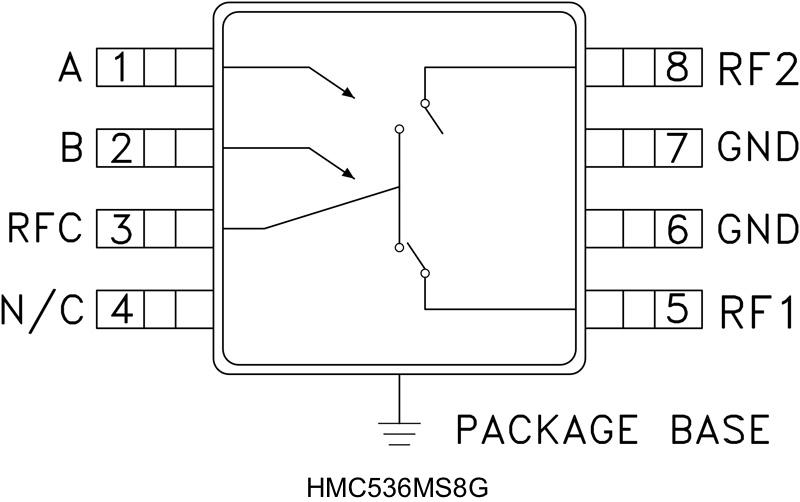

HMC536MS8G - 典型设计图：

HMC536MS8G - 3 Watt SPDT T/R Switch SMT, DC - 6 GHz

HMC536MS8G是AD公司的一款SPDT T/R产品，HMC536MS8G是3 Watt SPDT T/R Switch SMT, DC - 6 GHz，本站介绍了HMC536MS8G的封装应用图解、特点和优点、功能等，并给出了与HMC536MS8G相关的AD元器件型号供参考。

HMC536MS8G - 3 Watt SPDT T/R Switch SMT, DC - 6 GHz - SPDT T/R - 开关和多路复用器 - Analog Devices, LLC

产品描述

The HMC536MS8G(E) is a DC to 6 GHz GaAs MMIC T/R switch in an 8 lead MSOP8G surface mount package with an exposed ground paddle. The switch is ideal for cellular/PCS/3G basestation applications featuring low 0.5 dB insertion loss and +55 dBm input IP3. Power handling is excellent up through 6 GHz with the switch offering a P0.1dB compression point of +29 dBm at +3 volts control. On-chip circuitry allows positive voltage control of 0/+3 volts or 0/+5 volts at very low DC currents.

Applications

Cellular/PCS/3G Infrastructure

ISM/MMDS/WiMAX

CATV/CMTS

Test Instrumentation

优势和特点

Input P0.1dB: +34 dBm @ +5V

Insertion Loss: 0.5 dB

Positive Control: +3V or +5V

MS8G SMT Package, 14.8 mm²

Isolation: 27 dB

Very Fast Switching Speed
