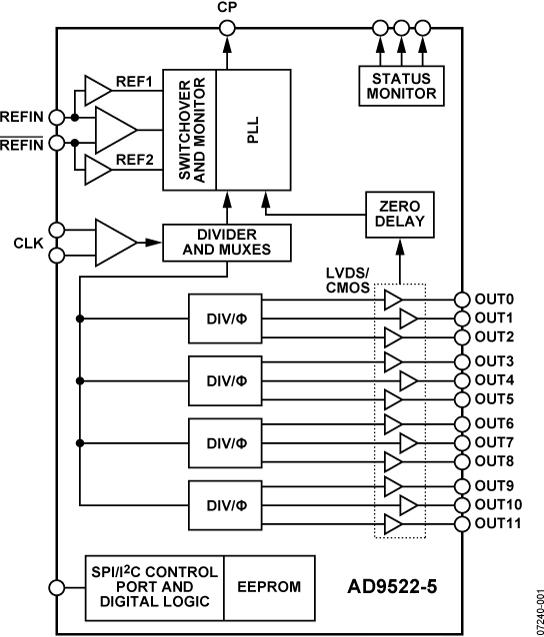

AD9522-5 - 典型设计图：

AD9522-5 - 12 LVDS/24 CMOS Output Clock Generator

AD9522-5是AD公司的一款时钟发生器产品，AD9522-5是12 LVDS/24 CMOS Output Clock Generator，本站介绍了AD9522-5的封装应用图解、特点和优点、功能等，并给出了与AD9522-5相关的AD元器件型号供参考。

AD9522-5 - 12 LVDS/24 CMOS Output Clock Generator - 时钟发生器 - 时钟与定时 - Analog Devices, LLC

产品描述

The AD9522-51 provides a multioutput clock distribution function with subpicosecond jitter performance, along with an on-chip PLL that can be used with an external VCO.

The AD9522 serial interface supports both SPI and I2C ports. An in-package EEPROM can be programmed through the serial interface and store user-defined register settings for power-up and chip reset.

The AD9522 features 12 LVDS outputs in four groups. Any of the 800 MHz LVDS outputs can be reconfigured as two 250 MHz CMOS outputs.

Each group of outputs has a divider that allows both the divide ratio (from 1 to 32) and the phase (coarse delay) to be set.

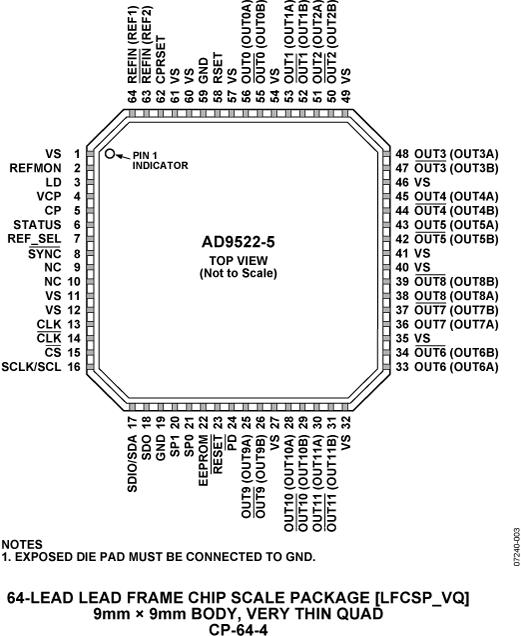

The AD9522 is available in a 64-lead LFCSP and can be operated from a single 3.3 V supply. The external VCO can have an operating voltage up to 5.5 V.

The AD9522 is specified for operation over the standard industrial range of ?40°C to +85°C.

The AD9520-5 is an equivalent part to the AD9522-5 featuring LVPECL/CMOS drivers instead of LVDS/CMOS drivers.

1The AD9522 is used throughout this data sheet to refer to all the members of the AD9522 family. However, when AD9522-5 is used, it is referring to that specific member of the AD9522 family.

Applications

Low jitter, low phase noise clock distribution

Clock generation and translation for SONET, 10Ge, 10G FC, and other 10 Gbps protocols

Forward error correction (G.710)

Clocking high speed ADCs, DACs, DDSs, DDCs, DUCs, MxFEs

High performance wireless transceivers

ATE and high performance instrumentation

Broadband infrastructures

优势和特点

Low phase noise, phase-locked loop (PLL) (Please see data sheet for additional details.)

Twelve 800 MHz LVDS outputs divided into 4 groups (Please see data sheet for additional details.)

Automatic synchronization of all outputs on power-up
